Plan a truck route in the IMPARGO Planner

Table of Content

  1. Plan a Truck Route with the IMPARGO Truck Route Planner
  2. Change Stops via Drag & Drop
  3. Change Route via Drag & Drop
  4. Choose Routing Mode
  5. Change Stops Sequence
  6. Avoid Countries Feature
  7. Live Traffic Consideration
  8. Additional Time per Stop
  9. Additional Time per Tour
  10. Additional Charge Feature
  11. Quick Adaption of Vehicle Attributes
  12. Vehicle Advanced Options
  13. Plan Route For Hazardous Goods (ADR)
  14. Frequently Asked Questions on Truck Route Planning



This guide shows you step by step how to plan a complete truck route with the IMPARGO truck route planner: from the first stop to toll and cost calculation, tour optimisation, live traffic data and hazardous goods (ADR) routing. The route, toll costs, driving time and total costs are calculated in real time, right in your browser. You don't need to install anything.

Only want a quick overview of the features? Then start with the Online HGV Truck Route Planner overview.

Animation: a car route sends the truck under a 4.0 m bridge that is too low for it, and the truck has to stop. Then IMPARGO plans the truck route around the bridge, by height and weight.
A car route can send your truck under a bridge that is too low



1. Plan a Truck Route with the IMPARGO Truck Route Planner

The IMPARGO truck route planner takes truck restrictions into account, such as height, weight, axle count, emission class and toll obligations. A car route planner ignores them. A route that fits the truck helps you deliver on time, save fuel and follow local traffic rules.

Inside the Planner Module you can attach both loading units (pallets, containers, parcels) and bulk products (tonnes, litres, m³) to the same route. This is especially useful when you're calculating a mixed-cargo trip, for example 24 t of cement plus a pallet of additives on the same tour.

Plan a Truck Route in 4 Steps

Step 1: Open the Planner module.
Click the "P" (tooltip: "Planner") in the left sidebar to open the → truck map.

Step 2: Enter the start location.
In the "Stops" section left of the map, type your start in the "Search start location…" field. When you select it, a yellow marker shows the stop on the map.

Step 3: Enter the end location.
Type your destination in the "Search end location…" field. The system then calculates the truck route, following the truck restrictions and routing settings. The results show at the bottom of the map:

  • truck mileage
  • operational time
  • cost per kilometer
  • total cost
  • toll cost
  • price per kilometer
  • estimated profit
  • estimated price



Step 4: Add more stops.
After the second stop, a new field appears. Click "Add stop…" to add more stops. If you leave it empty, the route stays the same.

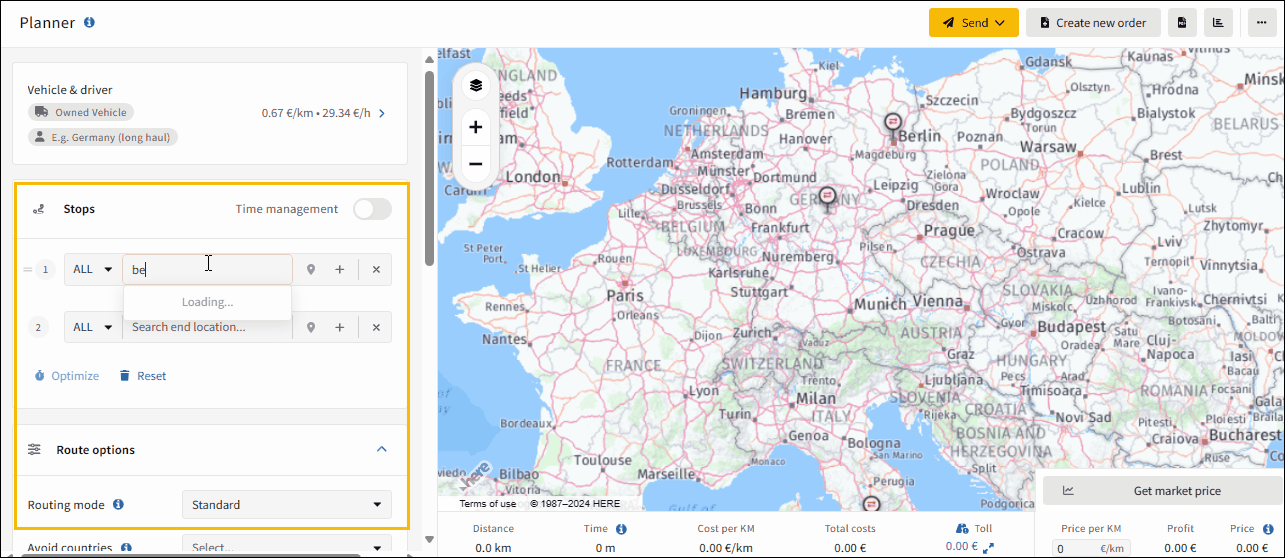

Truck route planner: adding stops manually in the IMPARGO Planner Module
How to add stops manually



Tip
The Planner Module calculates toll fees across Europe automatically. If you only need to check the toll cost of a planned route, the Truck Toll Calculator for Europe is a faster shortcut without full tour planning.



Tips for the Address Search

  • The address search bar is in the top left corner of the → Planner Module.
  • Combine city name, postal code, country, state and street. The more exact your input, the more exact the result.
  • Example: you look for "Waldstraße 14 in 2130 Mistelbach, Austria". If you type only "Waldstraße", you see up to 20 addresses with "Waldstraße". Add the street number, postal code, city name or country to narrow it down.
  • To search in one country only, enter the country code before the address. You can also search by geo-coordinates.
  • Faster with the keyboard: move through the results with the arrow keys and pick one with the Tab key. This helps when a customer on the phone wants a quick quote.
  • Or click the country code field next to the address field (named "ALL" by default) and pick a country. The search then only finds addresses in that country.

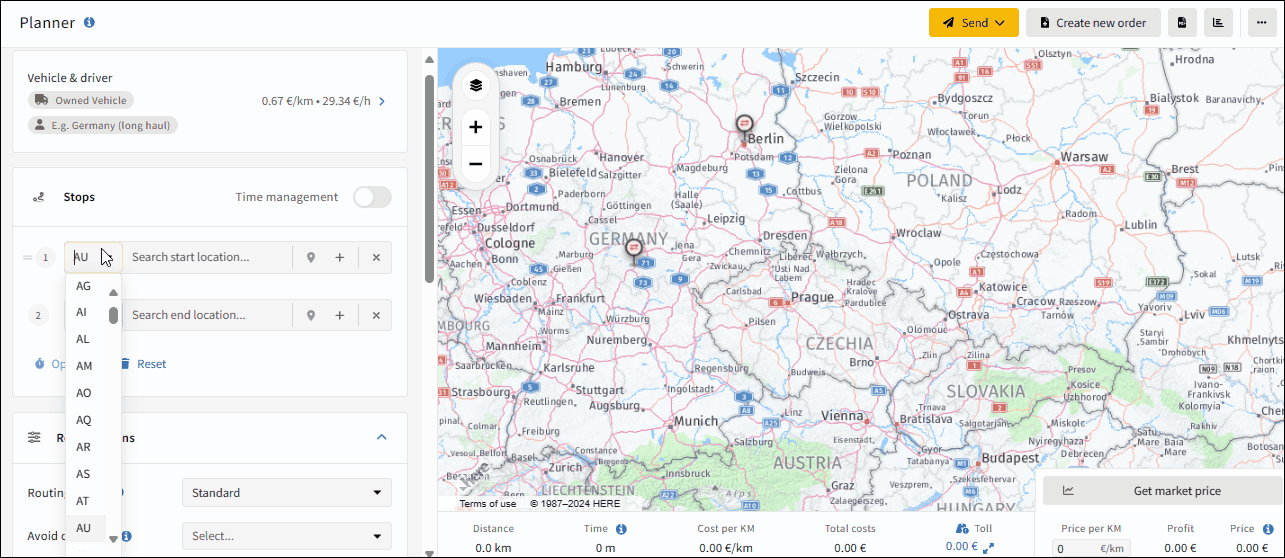

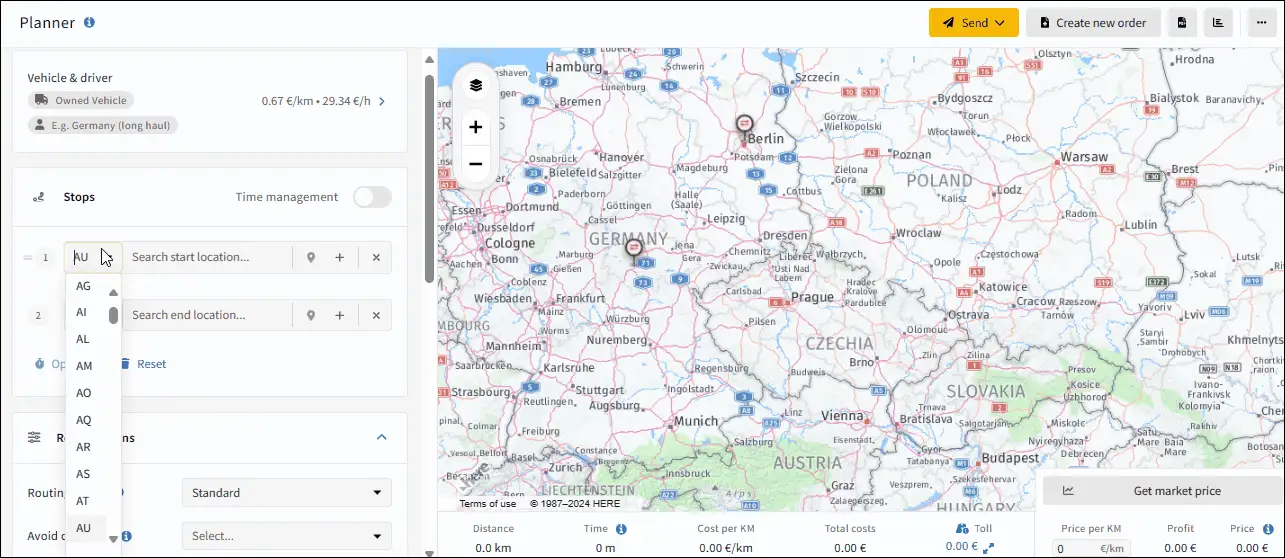

Truck route planner: address search by country code in IMPARGO
Address search by country code




2. Change Stops via Drag & Drop

You can move a stop on the map instead of typing a new address.

Move a Stop on the Map

Step 1: Grab the yellow stop marker.
Press and hold the left mouse button on the stop's yellow marker.

Step 2: Drag the marker.
Drag the marker to the new place and let go.

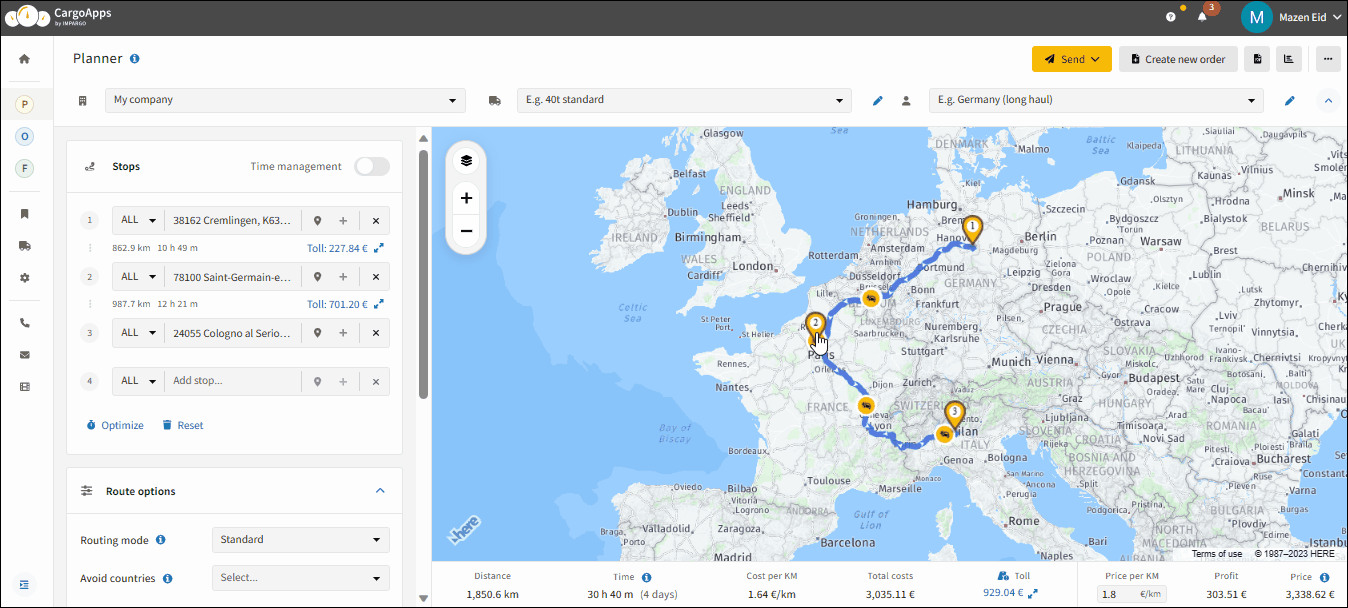

Truck route planner: drag and drop stop pins to adjust positions
Drag&Drop location pins to adapt stops



Use Case
The customer calls: "Can you move the pickup point 2 km to our new warehouse?" Instead of searching the address and re-entering it, drag the yellow pin on the map to the new position. The route, toll costs, and driving time update instantly.




3. Change Route via Drag & Drop

You can change the route IMPARGO suggests by dragging it on the map. Via points let you react to things the system does not know about, such as traffic changes, road closures or new delivery priorities.

Change the Route With Via Points

Step 1: Add a via point.
Click and hold the blue route and drag it to the place or street you want. A blue and white circle marks the new via point, and the route now runs through it.

Step 2: Add more via points.
Add as many via points as you need to shape the route.

Step 3: Delete a via point.
Click the via point to delete it.

Note: You can use this to make the route planner ignore a truck restriction: drag the route right onto the restriction. In most cases the restriction is then ignored, but warnings will probably appear.

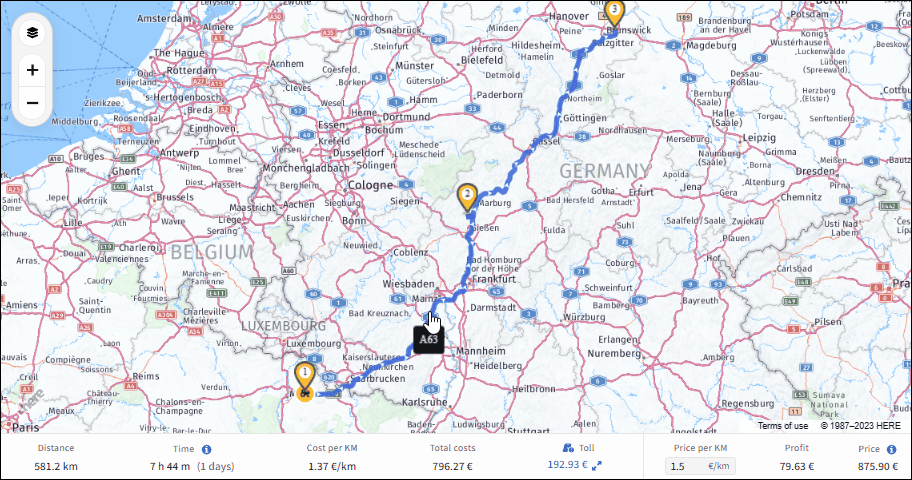

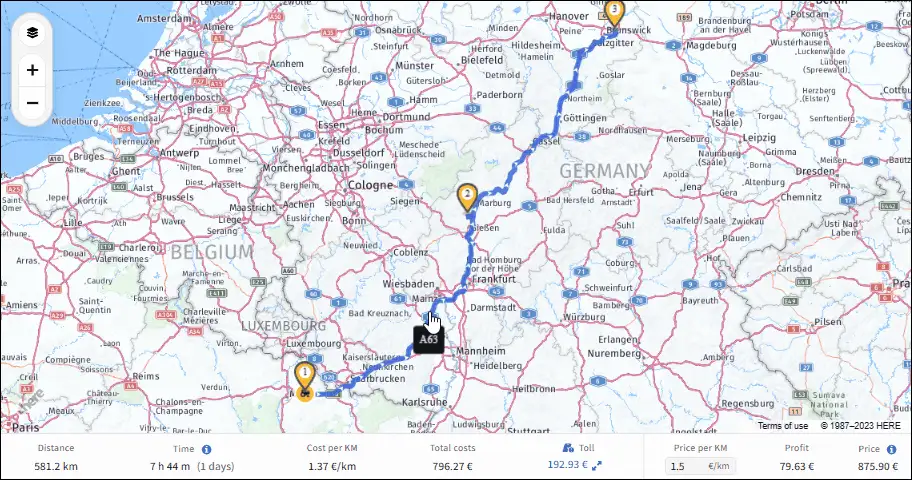

Truck route planner: drag and drop via points to adapt route
Drag&Drop "Points" to adapt truck route



Tip
Via points are also handy when your driver wants a known break (truck stop, fuel station, rest area). You can set the via point and ensure the route runs past that planned halt, without adding it as a proper stop.




4. Choose Routing Mode

The routing mode decides which route the Planner picks. It changes the toll cost, the total cost, the mileage and the driving time.

Pick a Routing Mode

In the "Route options" section, the "Routing mode" field offers four modes: Fastest (standard), Shortest, Cost optimized and Avoid toll roads.

  1. Fastest (standard): The route with the shortest driving time. This is the default and the most commonly chosen mode.
  2. Shortest: The route with the shortest distance in kilometres. It can be slower than the fastest route.
  3. Cost optimized: This mode selects the cheapest route, taking vehicle, driver and toll costs into account.
  4. Avoid toll roads: This mode optimizes mainly for toll costs and switches to toll-free roads where an alternative exists, for example in France. A small remaining toll is possible.



Truck route planner: Routing mode field with the values Fastest, Shortest, Cost optimized and Avoid toll roads in the IMPARGO Planner module
Choose your desired Routing mode



Key Point
Fastest (standard) gives you the fastest route, Cost optimized weighs vehicle, driver and toll costs against each other, Avoid toll roads saves toll but usually costs time and kilometres. To compare both versions of the same tour, follow the guide compare a route with and without tolls.




5. Change Stops Sequence

You can change the order of the stops at any time, for example when priorities change or something unexpected happens. Planning several tours at once? The HGV Truck Tour Optimisation Planning tool adds bundling and order grouping across several tours.

Method 1: Drag Stops in the List

Step 1: Find the drag icon.
Move the mouse over the stop's number. It turns into a drag icon with the tooltip "Drag to reorder".

Step 2: Move the stop.
Press and hold the left mouse button on the drag icon and move the stop to its new place.

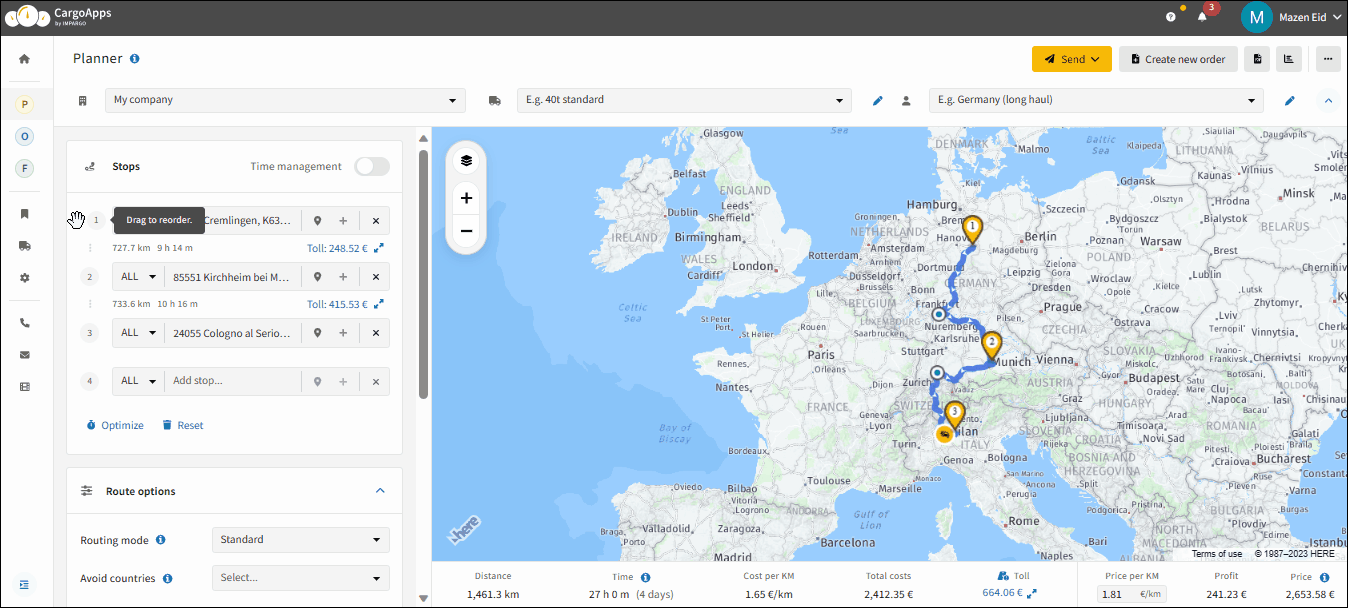

Truck route planner: drag-to-reorder for changing stop sequence
Use "Drag to reorder" and change stops sequence

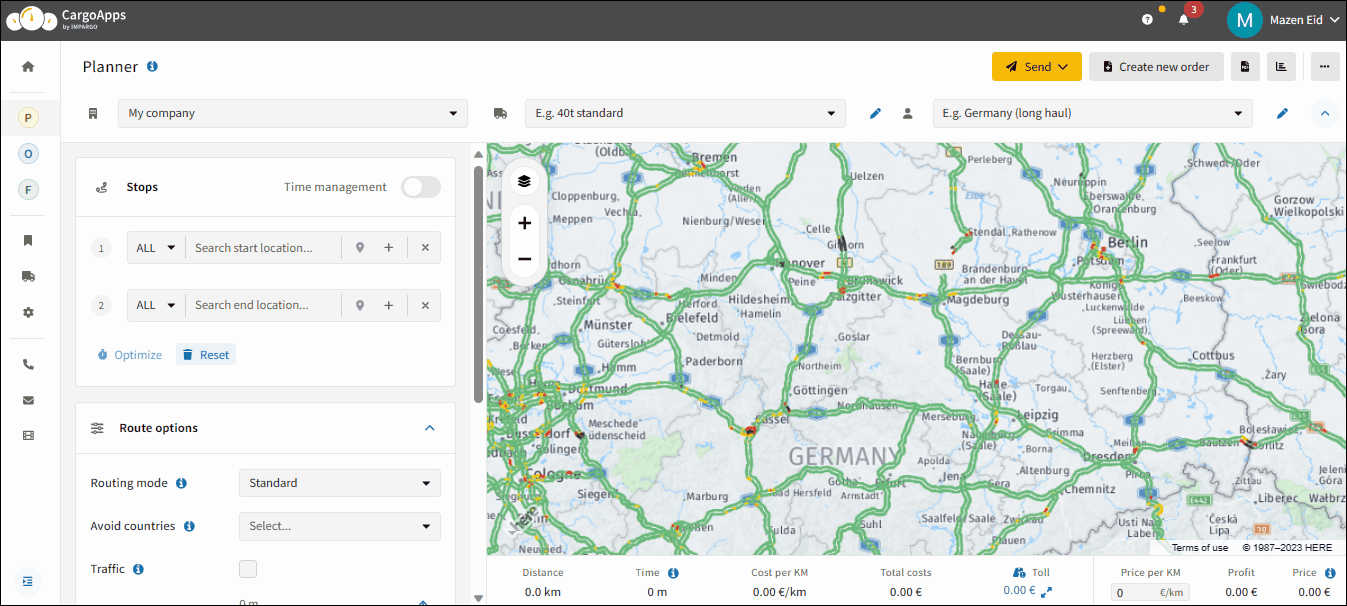

Method 2: Use the Map Menu

Step 1: Open the map menu.
Right-click on the map. A menu with several options opens.

Step 2: Add the stop from the menu.
In the menu you can add stops in the right order, get the geo coordinates or save addresses.

  • Click "Add as a start" to add the chosen place as the starting point.
  • Click "Add in-between" to add it as a stop in between on your planned route.
  • Click "Add as a destination" to add it as the next destination.



Truck route planner: changing stop sequence via map right-click menu
Change sequence of stops via the map



Sequence vs Round Trip Optimization

A good stop order saves time and money. Let the Planner sort the stops for you, especially on tours with more than 3 stops.

Optimize the Stop Order

Step 1: Find the "Optimize" button.
After you enter all stops, find the "Optimize" button below the address field.

Step 2: Pick the optimization.
Click "Optimize" and the Planner sorts the stops for you. If the start must stay the same, choose "With First Stop Fixed" (Sequence Optimization). If the start and the end must both stay the same, choose "With First and Last Stops Fixed" (Roundtrip Optimization).

Truck route planner: roundtrip and sequence optimization
Activate round trip optimization



Use Case
Distribution round with 8 stops: You have 8 delivery addresses around Cologne in the morning and the truck has to return to the depot in the evening. Enter all 8 addresses in any order and use "With First and Last Stops Fixed" (Roundtrip Optimization). The system sorts the 6 middle stops into the most efficient sequence automatically. Typical saving: 15 to 30 km and 30 to 60 minutes per tour.




6. Avoid Countries Feature

You can keep a route out of certain countries, for example because of rules, transit times or your own preferences.

Exclude Countries From a Route

Step 1: Find the "Avoid countries" field.
The "Avoid countries" field is in the Route Options section on the left side of the map. You can pick more than one country.

Step 2: Select the countries to avoid.
Select the countries. The platform then calculates an alternative route.

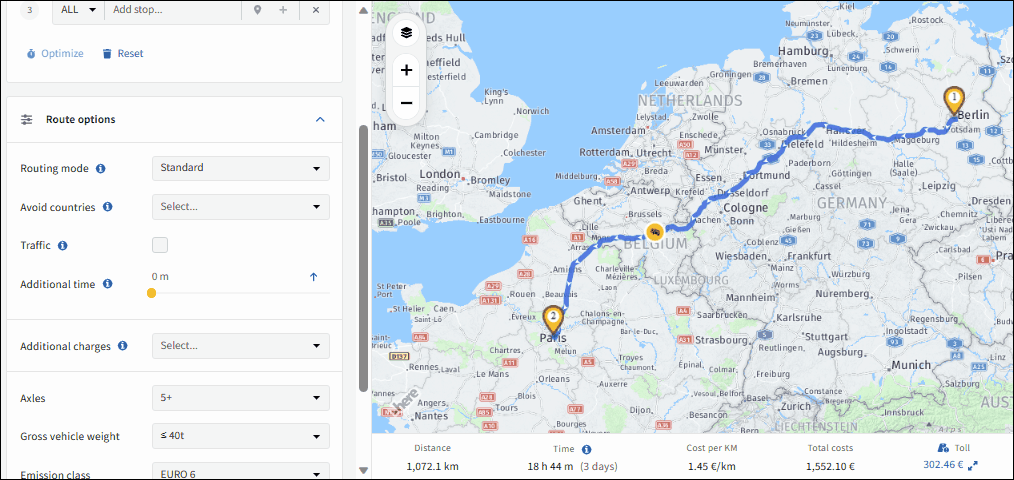

Truck route planner: avoid countries feature for alternative routes
Select the countries the truck route should avoid



Use Case
Avoiding Switzerland: For a tour from southern Germany to northern Italy, the fastest route often runs through Switzerland, which means extra LSVA charges and border formalities for vehicles without CH equipment. Select Switzerland under "Avoid countries", and the system recalculates the alternative route via Austria automatically.

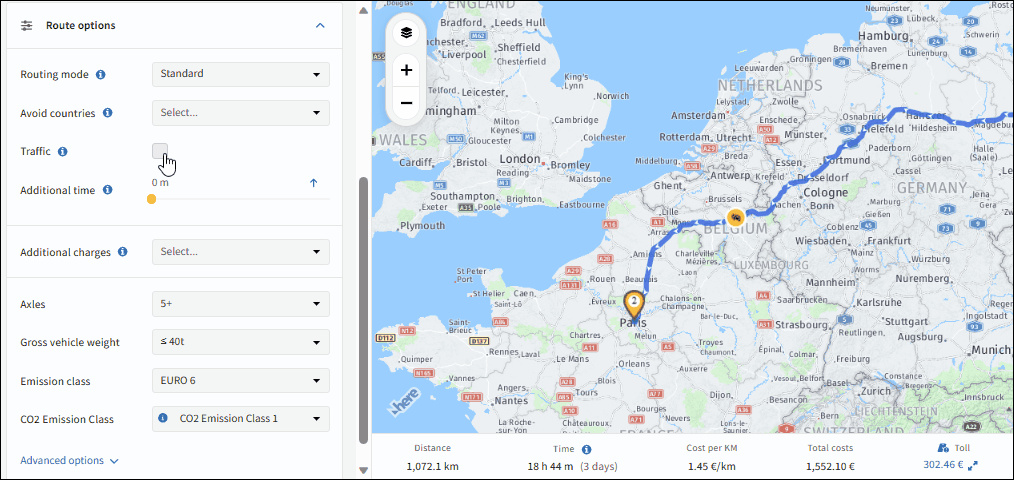

7. Live Traffic Consideration

With traffic switched on, the Planner uses live traffic, historical traffic data and long-term road closures. Your route then matches real road conditions as closely as possible, and delivery times are more reliable.

Turn On Live Traffic

Step 1: Find the "Traffic" option.
In the → Planner Module, find the "Traffic" check box in the Route Options section on the left side of the map.

Step 2: Tick the check box.
The truck routing now uses live traffic data and historical traffic patterns.

Step 3: Set a departure time.
Set a departure date and time to see the traffic you can expect. For a later departure, the system uses historical traffic data. For a departure right now, it also uses live traffic.

Important Notes

  • Long-term closures: road closures that last longer than one day. Routing only considers them when "Traffic" is on.
  • Traffic data: With "Traffic" enabled, routing considers both live traffic and historical data.
  • Recommendation: always set a realistic departure time. Then the routing uses the right traffic data (live or historical) and any long-term closures.



Truck route planner: live traffic and historical data considered in routing
Consider traffic to your route



Use Case
Early-morning delivery to a hub: A 6:00 a.m. delivery to Frankfurt is not the same as 8:30 a.m.: the A5 motorway behaves very differently at 8 a.m. than at night. Set the departure time for a tour that starts at 22:00 and arrives at 6:00 to 22:00 rather than "now". The system then calculates the driving time with night-time traffic patterns, typically 15 to 25 % faster than the daytime estimate.




8. Additional Time per Stop

Extra time makes the operational time longer, and so it changes the cost of the trip. You can add it at a single stop or once for the whole tour.

Add Time at a Stop

Step 1: Open the stop details.
In the "Stops" section of the → Planner Module, click "+" on the right side of the address field.

Step 2: Set the time at the stop.
Move the time at stop slider to how long the truck and driver will stay at this stop, for example to load, unload, park or refuel.

The operational time and the costs at the bottom of the map update right away:

  1. For your own trucks, the costs follow the hourly rates of your vehicle and driver.
  2. For subcontractors, a waiting time surcharge from the subcontractor cost profile applies.

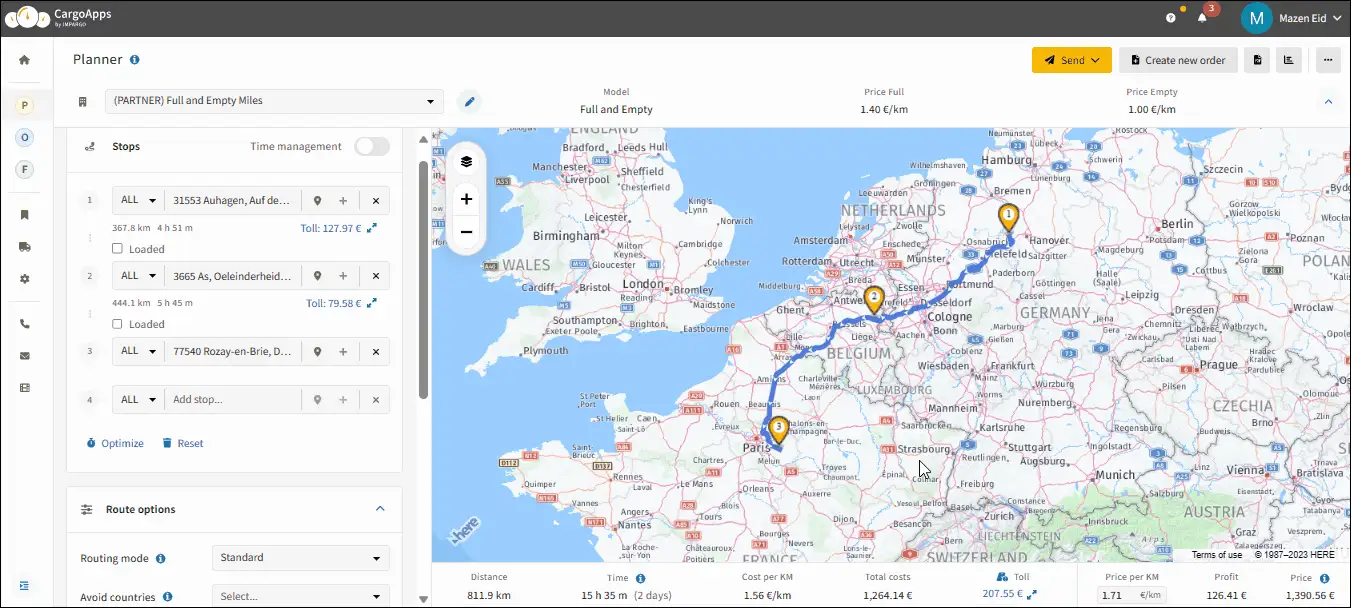

Truck route planner: additional time per stop for loading and unloading
Calculate additional time for your tours



Tip
Realistic stop times matter more than short stop times. Plan 45 to 60 minutes of waiting at a construction site, 30 minutes at a logistics center, 15 minutes at an end-customer with a doorbell. Slightly generous estimates are better than tight ones: they reduce stress at later stops and avoid customer complaints about missed delivery windows.

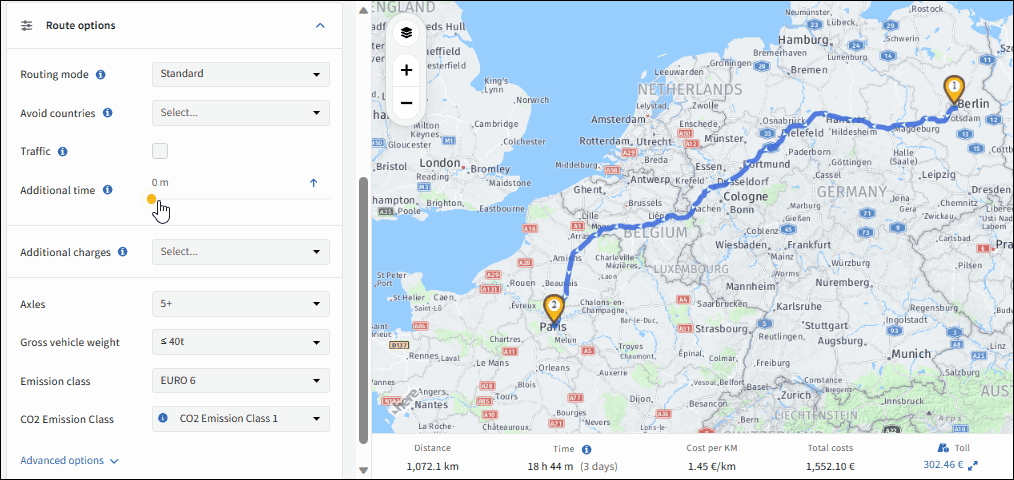

9. Additional Time per Tour

Instead of adding time at a single stop, you can also add extra time once for the whole tour. Use it for time that does not belong to one stop, such as breaks or additional waiting periods. Like the time per stop, it extends the total operational time and therefore changes the costs of the trip.

Add Time to the Whole Tour

Step 1: Set the extra time.
Use the "Additional Time" slider to add time for loading, unloading, breaks or extra waiting. For your own trucks, the costs follow the hourly rates of your vehicle and driver. For subcontractors, the waiting time surcharge from the subcontractor cost profile applies.

Step 2: Extend to a full day.
Click the arrow (↑) next to the slider to extend the operational time to a full day. For subcontractors, the default is 8 hours. For your own trucks, the driver's working hours set the limit.

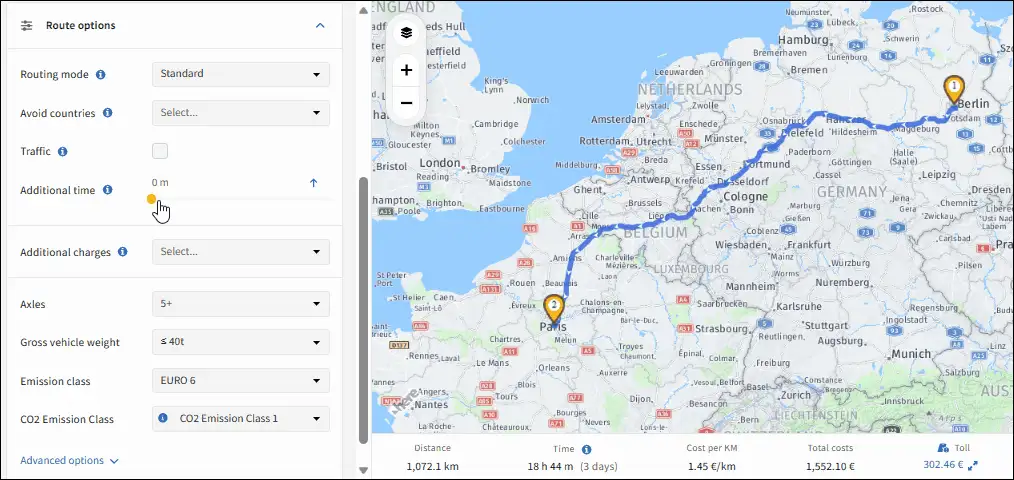

Truck route planner: additional time per tour for the full operational day
Add additional time to your trip




10. Additional Charge Feature

Add extra costs to a route, such as ferry costs, driver premiums or admin fees. They become part of the trip cost, so your estimate is complete and easy to explain to customers and colleagues.

Add Charges to a Route

Step 1: Find the additional charges.
In the → Planner Module, find the "Additional Charges" section in the Route Options, on the left side of the map.

Step 2: Select charges.
Click the "Additional charge" field and pick the charge you want to add to the transport cost.

Step 3: Add your own charges.
Click inside the "Select" field and choose "+ Add new". Enter the name and the value of the charge, then click "Add additional charge".

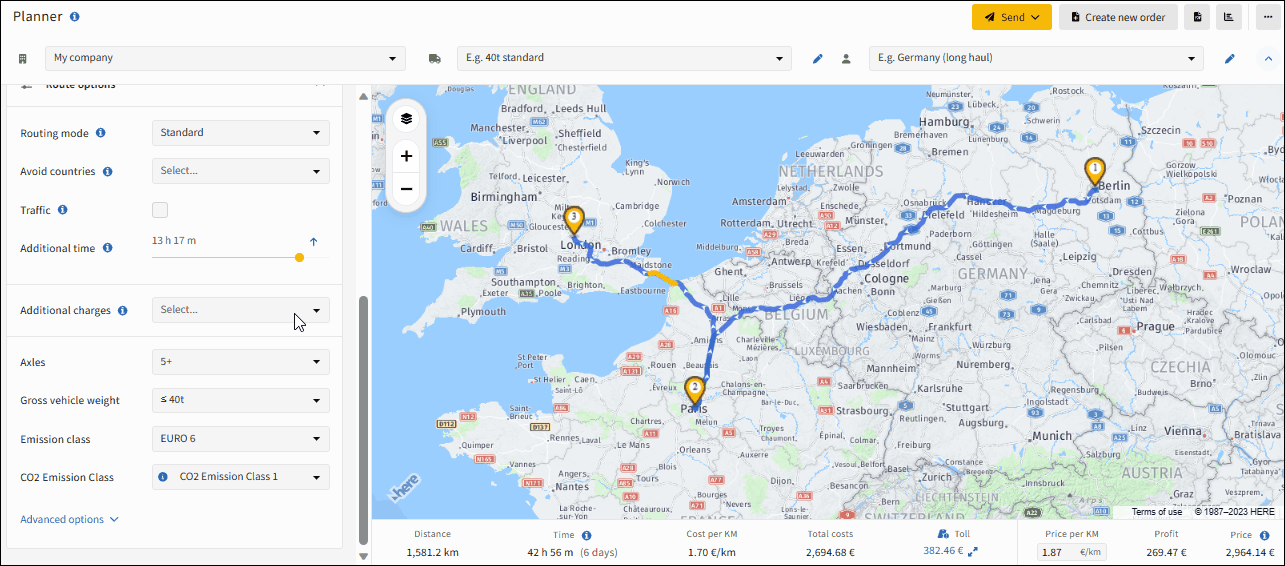

Truck route planner: adding custom charges like ferry costs or driver premiums to a route
Add additional charges to your trip



Use Case
Tour with ferry Rostock-Trelleborg: Ferry costs (e.g. €380), driver overnight on board (€75), and admin fee (€25) must be in the quote. Instead of tracking these in a separate spreadsheet, add them directly as additional charges on the route. The order price picks up all three items with name and value, and the customer sees a transparent breakdown in the PDF order confirmation.




11. Quick Adaption of Vehicle Attributes

Enter the size, weight and other details of the vehicle, so the route fits the truck you send. This prevents problems with height and weight restrictions and helps you follow the rules.

Change the Vehicle Settings

Step 1: Find the vehicle fields.
In the → Planner Module, go to the bottom of the Route Options section on the left side of the map. There you enter general details about the selected vehicle.

Step 2: Adapt the vehicle settings.
Enter the number of axles, the gross vehicle weight and the emission class of the vehicle.

  • You can preset the routing settings in the vehicle and trailer profiles.
  • If you change the profiles, they overwrite the settings in the "Route Options".
  • If you change the settings in the "Route Options" and they no longer match the selected vehicle and trailer profiles, you see the warning "Settings do not match with the selected vehicle profiles…".

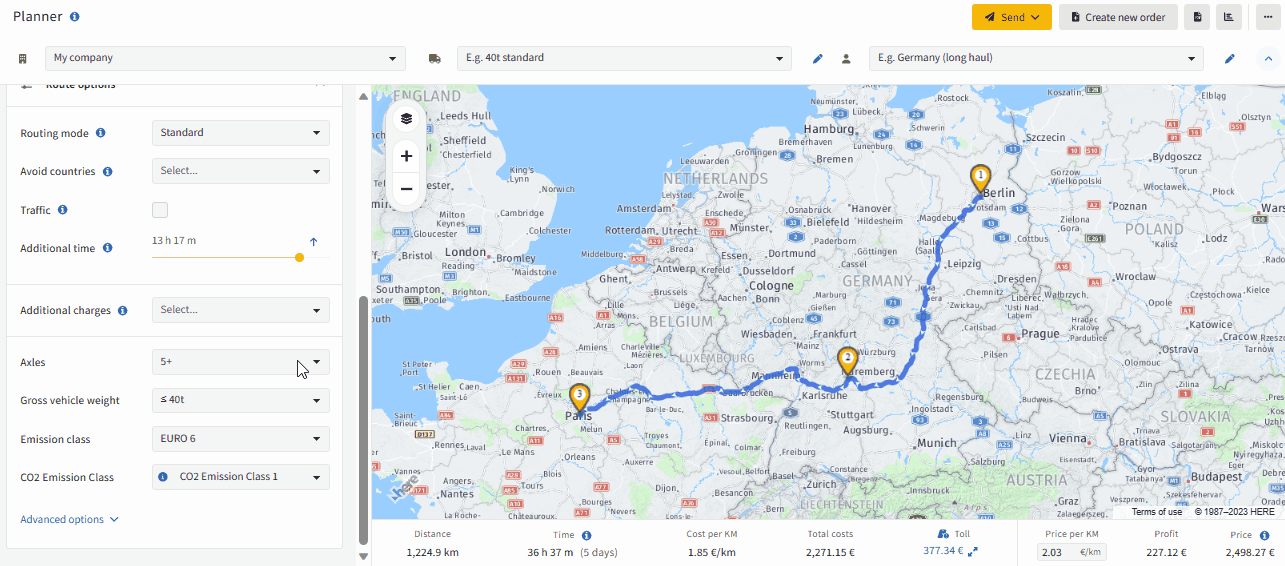

Truck route planner: adapting vehicle attributes like axles, weight, and emission class
Enter general vehicle attributes to calculate trip



For more detail, see the Calculate Route Costs section. A compact overview of vehicle cost calculation is also on the Truck Cost Calculator page.


12. Vehicle Advanced Options

The advanced options add more details about the vehicle: hazardous goods, axle weight, height, average speed and tolls.

Use the "Advanced options" Section

Step 1: Open the "Advanced options" section.
In the → Planner Module, go to the "Advanced Options" section. The hazardous goods field is there.

Step 2: Change the settings.
Say if the vehicle carries hazardous goods. Enter the axle weight and height of the vehicle. Set its average speed, which matters for exact routing and scheduling.

Step 3: Turn tolls on or off.
Choose whether the tolls are part of the total price of your transport offer.

  • IMPARGO calculates the average speed of the trip from the road types. Highways, city roads and other roads each have their own speed.
  • The average speed sets the driving time, which is part of the operational time.



Truck route planner: advanced vehicle options including axle weight, height, and toll toggle
View advanced options for chosen cost profile




13. Plan Route For Hazardous Goods (ADR)

For hazardous goods, the route must avoid areas that are closed to your ADR classes. The Planner plans around them when you select the hazardous goods categories. If you run ADR transports regularly, the Dangerous Goods (ADR) Transport Solution adds real-time monitoring and compliance checks.

Avoid Areas Closed to Hazardous Goods

Step 1: Open the hazardous goods field.
In the → Planner Module, open the "Advanced options" section (see section 12) and find the hazardous goods field.

Step 2: Select hazardous goods categories.
Choose one or more hazardous goods categories. The route then avoids restricted areas.

Truck route planner: selecting ADR hazardous goods categories for compliant routing
Choose vehicle profile and adjust for hazardous goods



Warning
ADR tunnel restrictions and no-go zones differ per country and per hazardous goods class. Always select every ADR class your cargo contains. A missing category can route the driver into a restricted zone. For mixed loads with several classes, the most restrictive class always applies.



Use Case
Class 3 diesel delivery from Antwerp to Munich: Select ADR class 3 (flammable liquids), and the system routes automatically around tunnels with C/D/E categories (e.g. the Karawanken Tunnel with restrictions). You see the alternative route with the added distance and toll cost immediately and can inform driver and customer accordingly.



Example
A truck route from Hamburg to Milan with 40 t gross weight and Euro 6 class: the Planner Module calculates the distance, toll costs for Germany (Toll Collect), Austria (ASFINAG), and Italy (Telepass/Free Flow), the estimated driving time including EU driving-hour rules, and the total cost including fuel and driver wages, all in under 30 seconds, directly in your browser.




14. Frequently Asked Questions on Truck Route Planning

How much does the IMPARGO truck route planner cost?

The basic route calculation in the Planner Module is available free of charge. For the full feature set (including multi-tour optimisation, automatic order bundling, driver dispatch, the DriverApp, and real-time toll optimisation), IMPARGO offers several licence models. A complete pricing overview is on the Transport Management System page.

How does toll calculation work in the truck route planner?

Once you've entered start and end locations, the Planner Module calculates toll costs for every country on the route automatically. It accounts for country-specific toll systems (Toll Collect in Germany, ASFINAG in Austria, Eurovignette and Vrachtwagenheffing in the Netherlands, Telepass and Free Flow in Italy, LSVA in Switzerland, and more), vehicle class, axle count, and emission class. For toll-only calculations without route planning, the standalone Truck Toll Calculator for Europe is faster.

What's the advantage of a truck-specific route planner over Google Maps?

Unlike car navigation systems, a truck-specific route planner accounts for HGV restrictions (bridge heights, weight limits, tunnel bans), exact toll costs per country, ADR no-go zones for hazardous transports, and emission-class-restricted environmental zones. This avoids fines, detours, and unrealistic cost calculations. The route planner does not know Sunday and holiday driving bans: block those days in the Dispatch module with "Add time blocker" in the truck menu.

What vehicle data is needed for an accurate route calculation?

For a precise truck route, the system needs: gross vehicle weight, axle count, emission class (Euro 4 / 5 / 6), vehicle height and width, hourly rates for vehicle and driver (for the cost side), and possibly hazardous goods categories. These values can be entered per tour or saved permanently in vehicle and trailer profiles.

Does the truck route planner work across all of Europe?

Yes. The Planner Module covers the entire European road network, from Scandinavia to Southern Europe, including Eastern European countries with toll obligations (Poland, Czech Republic, Slovakia, Hungary, Romania, Bulgaria) and Switzerland (LSVA). Toll rates are updated regularly whenever country-specific tariffs change.

Can bulk products also be calculated in the truck route planner?

Yes. Through the stop activity panel, you can attach loading units and bulk products with quantities, prices, and costs to any loading or unloading stop. Bulk products are measured in tonnes, litres, or cubic metres, typical for cement, fuel, milk, or grain transports. More details on the Bulk Haulage Transport Solution page.

Get Started with the Planner Module

Calculate transport costs with cost profiles


Impargo-logo

Digitalize your transport business overnight.

© IMPARGO 2026, All rights reserved.
